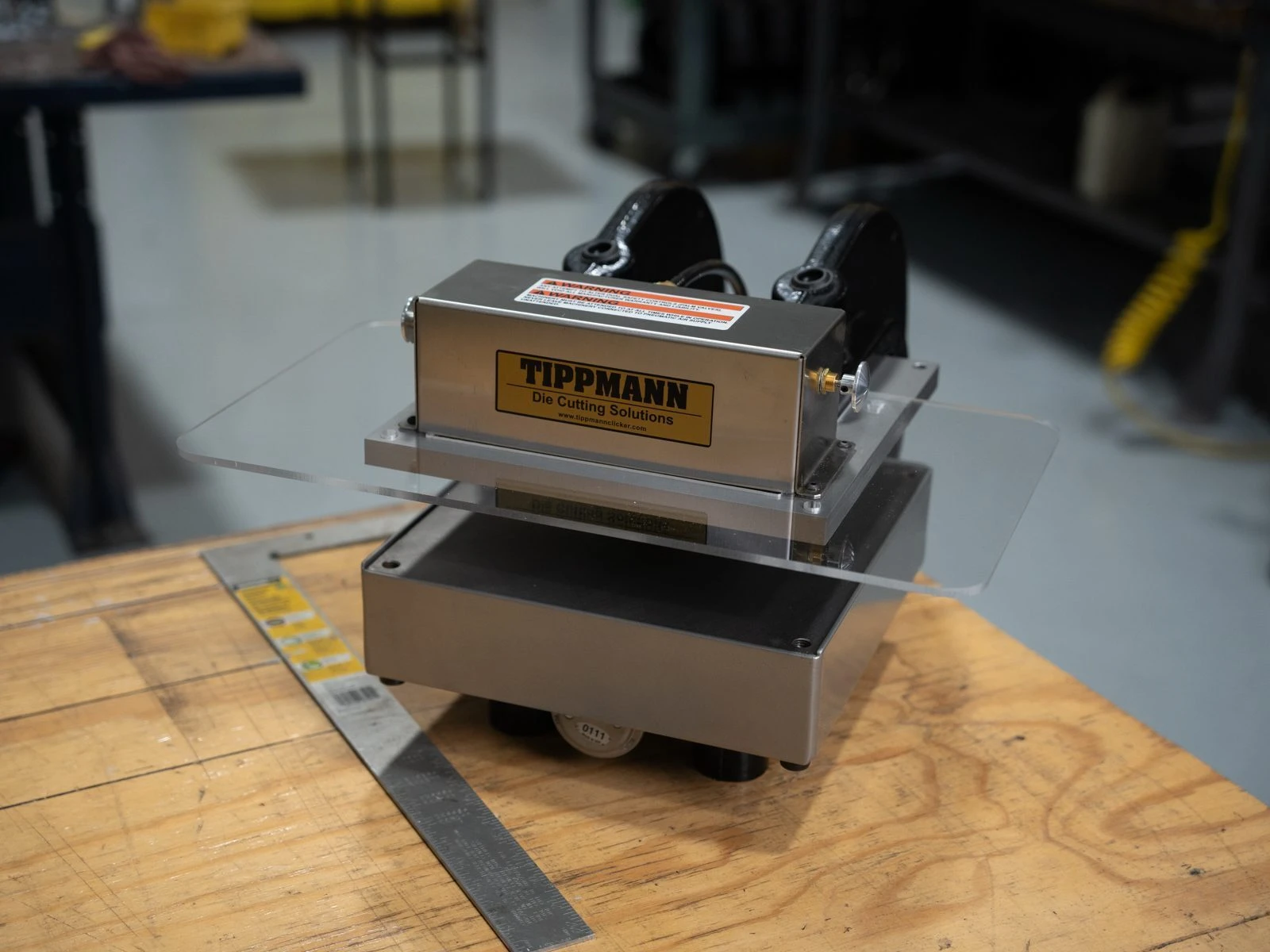

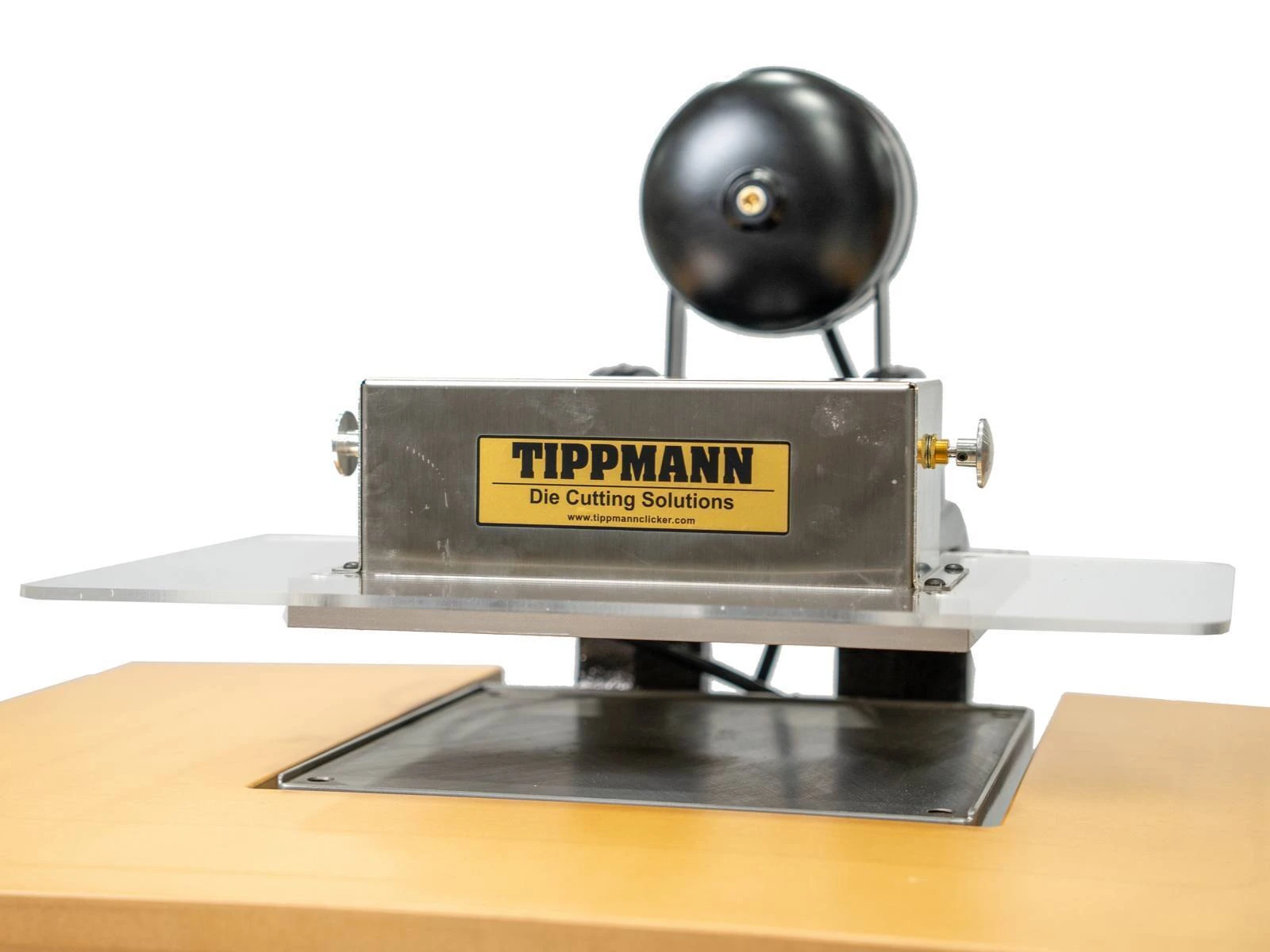

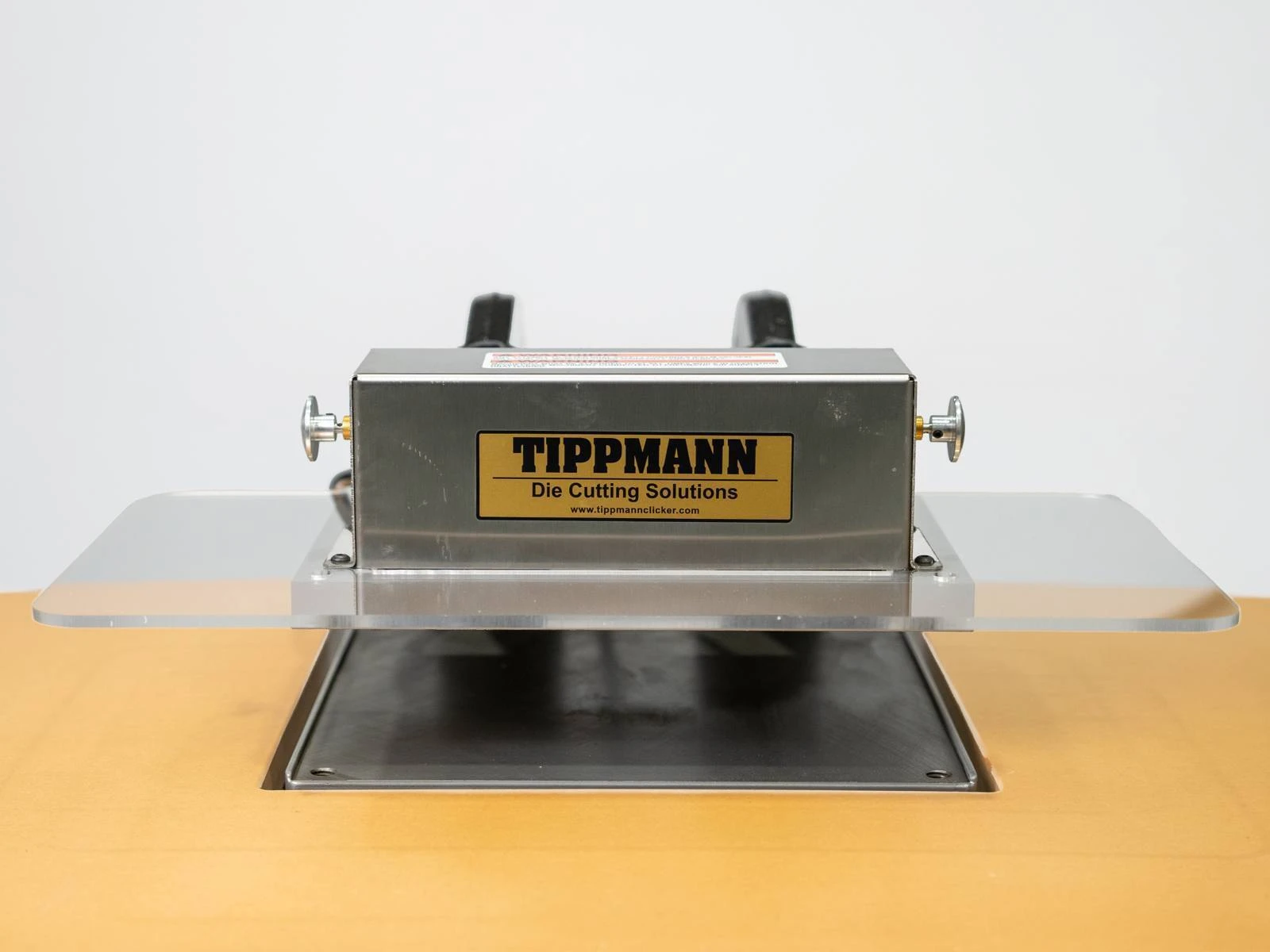

Tippmann Clicker 700 Die Cut Press Stainless Steel Plate With Anti Tie Down

No reviews yet Write a Review
SKU:
CL7-2HS
$9,000.00
$9,000.00

Description

In stock ready to ship!

Clicker 700 Die Cutting Press Stainless Steel With Two Hand Anti Tie Down

Financing Options Available



The Tippmann Clicker 700 Die Cutting Machine delivers 7 tons of cutting pressure at the touch of a button and is a cost effective alternative to a hydralic cutting press. With this kind of cutting power, you can count on the Clicker 700 die cutting press to deliver a perfect die cut every time. The Clicker die cutter can cut a wide range of materials such as plastics, rubber, fabrics, gaskets, leather, paper stocks, etc. This is a very versatile die cutting machine.

The Clicker's cast-iron "C" frames allow for easy loading of dies and materials. Just place the die and material on the Cutting Deck, press the Dual Palm Buttons, and in less than three seconds you will have a perfect die cut.

Designed with very few moving parts, clicker die cutting machines are easy to operate and maintain. The Tippmann Clicker 700 patented Air System raises the Cutting Deck to give you 7 tons of cutting pressure. Requiring no electricity or hydraulics, this die press operates off of 80-110 PSI of air pressure.

The Clicker 700 medium capacity cutting area (12" X 12") allows for countless die cutting patterns. Tippmann also manufactures the Clicker 1500 die cutting press which delivers up to 15 tons of cutting pressure and has a (12" x 24" ) cutting area.

Don’t forget to view our custom die section. We can manufacture just about any custom die to your exact specifications.

All Tippmann Die Cutting Presses come with a one year warranty on all parts and labor and a 30 day money-back guarantee. (except shipping)

If you have any questions prior to ordering contact Chelsea 260-441-9603

International Orders Please email Chelsea at Chelsea@tippmannindustrial.com

  Attractive Tippmann "Clicker" Die Cutting Press Features

Air operated die cutting presses deliver tons of pressure at the touch of a button.

  • NO electricity or hydraulics required. These die cutting presses operate off of
    80-110 psi
  • Die cut plastics, rubber, fabric, gasket material, leather, paper card stocks, etc.
  • Compact size
  • Large cutting capacity
  • Heavy cast iron C frame construction permits side or front loading.
  • Very low maintenance
  • Dual safety palm buttons -- OSHA COMPLIANT
  • Two Hand Anti-Tie Down Air Logic Upgrade available for $650 installed
  • Very low price



CLICKER 700 Die Cutting Press  ships with:

Manual and instructional DVD

Finger Guard w/ mounting bolts

Your Choice of a thick or thin cutting board



SPECIFICATIONS:

  • Make.................................................................Tippmann
  • Model...................................Clicker 700 Die Cutting Press
  • Cutting Pressure.....................................................  7 ton.
  • Cutting Beam......................................................12" x 12"
  • Cutting Area........................................................12" x 12"
  • Deck clearance...........................................................2.0"
  • Travel of deck is adjustable up to .................................1.0"
  • Recommended die height...........................................1.25"
  • Approximate Shipping weight..................................260 lbs
  • Operating Pressure..........................................80-110 PSI
  • Overall Dimensions.............................12" W, 19" D, 13" H



The Tippmann Clicker die cutting press is offered in 2 sizes.  The Clicker 700 steel rule die cutting press has a 12" x 12" die cutting area, while the Tippmann Clicker 1500 die cutting press has a 12" x 24" die cutting area.  These die cutting presses run on compressed air and are ready to go right out of the box.  Die cut gaskets, die cut fabric, die cut printed material, die cut whatever you need to die cut, using the Tippmann Clicker die cutting machine. This die cutting press is simple and fast.  These die cutting presses by Tippmann Die Cutting Machines are use in thousands of different die cutting applications, for hundreds of different die cutting industries.  Tippmann Clicker presses offers free sample testing to see if the the Tippmann Die Cutting Press is the right die cutting press for your needs. If you would like to send us sample material to test die cut in our die cutting test lab, we would be happy to provide a live die cutting demonstration for you on our live camera.  We will then send you the die cutting samples which were die cut using the Tippmann Clicker press.

APPLICATIONS FOR THIS PRESS INCLUDE BUT ARE NOT LIMITED TO

  • Cutting Gaskets
  • Cutting Printed material
  • Cutting Envelopes
  • Cutting Leather
  • Cutting Textiles
  • Cutting Medical Devices
  • Cutting Samples
  • Cutting Pictures
  • Cutting Magnets
  • Cutting Swatches
  • Cutting Sticker
  • Cutting Labels

Materials:

C Casting: cast iron

Top plate: Stainless Steel

Middle Plate: Stainless Steel

Bottom Plate: Aluminum

Control Box: Stainless Steel

Adjusting Bars:  Steel

Cutting Deck: HDPE (high density polyethylene)
