Description
In stock ready to ship!

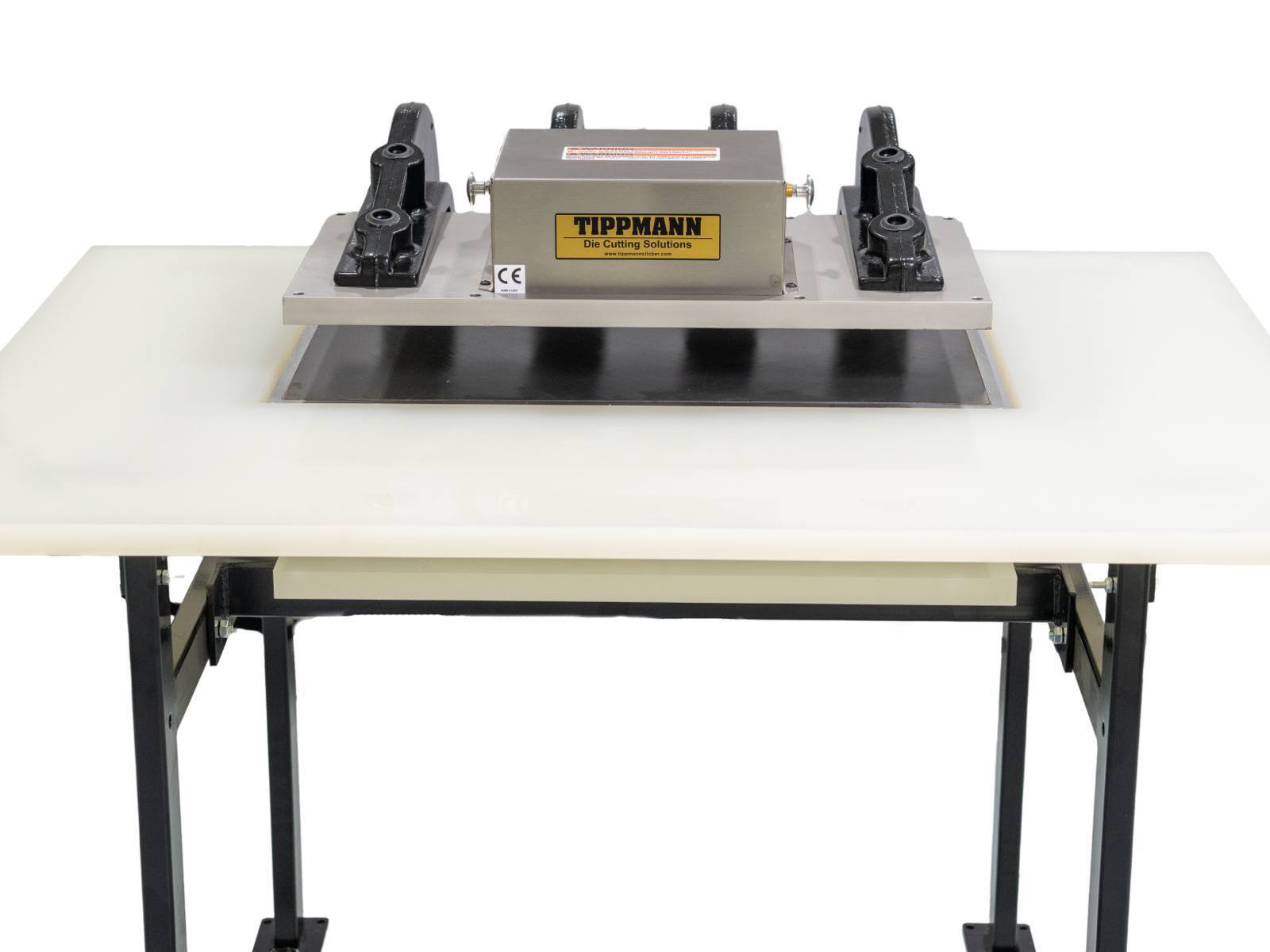

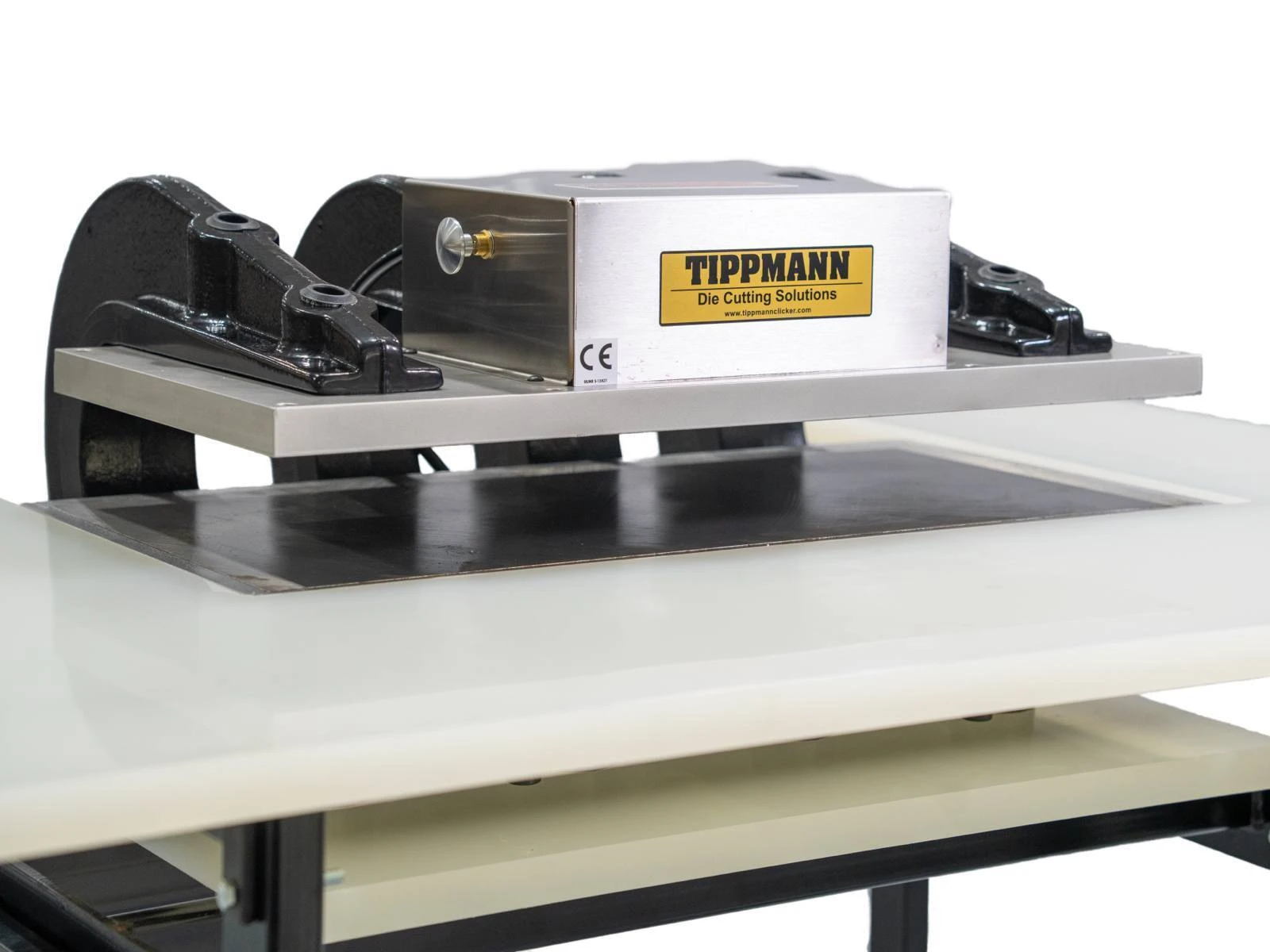

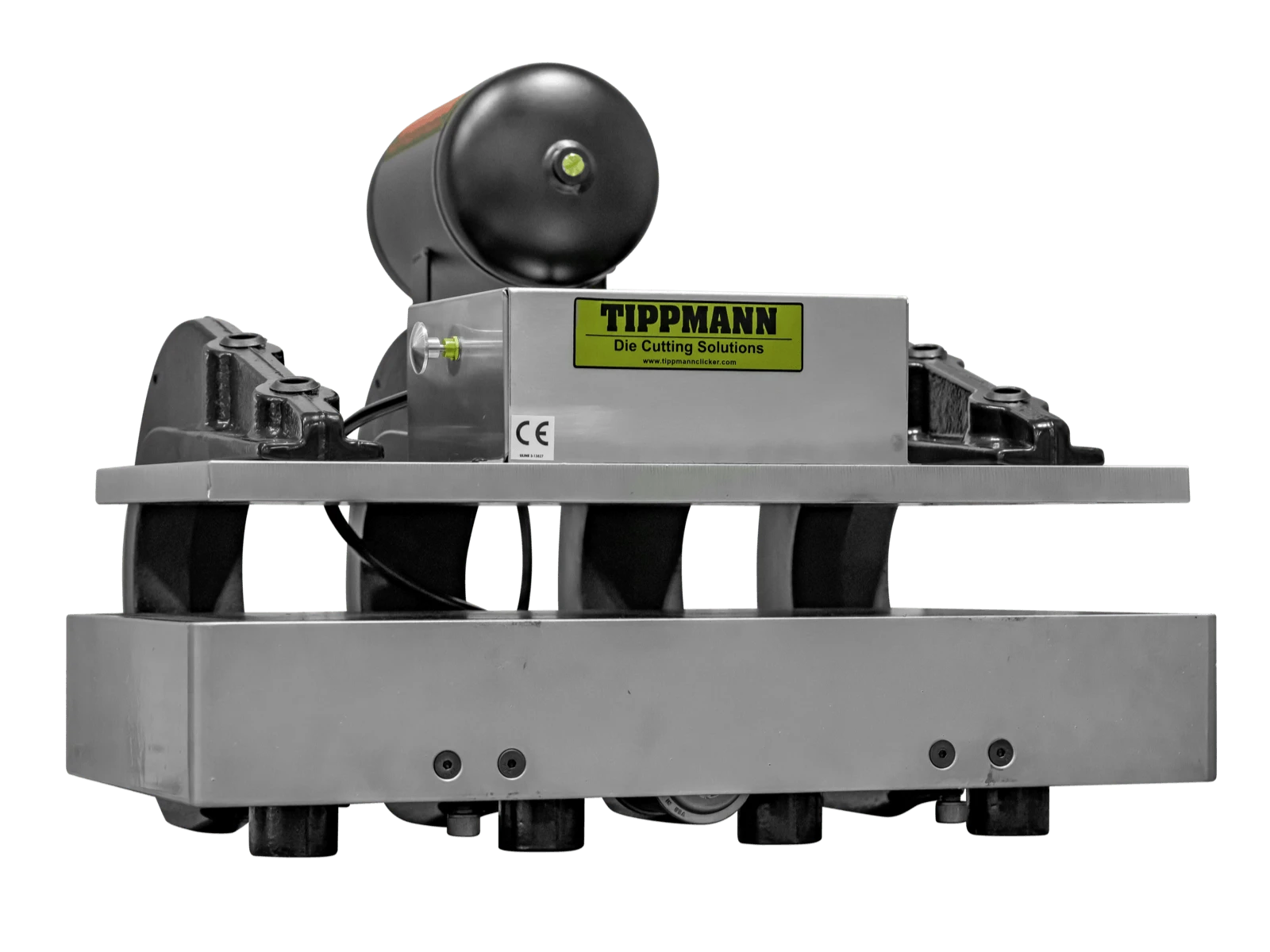

Clicker 1500 Die Cutting Press W/ Stand & Air Accumulator
Financing Options Available
- Contact Chelsea at chelsea@tippmannindustrial.com or 260-305-3359
The Tippmann Clicker 1500 Die Cutting Machine delivers 15 tons of cutting pressure at the touch of a button and is a cost effective alternative to hydraulic cutting presses. With this kind of die cutting power, you can count on the Clicker 1500 Die Cut Machine to deliver a perfect die cut every time. The Clicker die cutting press can cut a wide range of materials such as plastics, rubber, fabrics, gaskets, leather, paper stocks, etc. This is a very versatile die cutting machine.
The Tippmann Clicker die cutting press allows you to cut with your die on the bottom facing cuttting blade, or your cutting die on the top facing cutting blade down.
The Clicker's die cutting press cast-iron "C" frames allow for easy loading of dies and materials. Just place the die and material on the Cutting Deck, press the Dual Palm Buttons, and in less than three seconds you will have a perfect die cut.
Designed with very few moving parts, clicker die cut machines are easy to operate and maintain. The Tippmann Clicker 1500 die cutting machines patented Air System raises the Cutting Deck to give you 15 tons of cutting pressure. Requiring no electricity or hydraulics, this die press operates off of 80-110 PSI of air pressure.
The Clicker 1500's large capacity cutting area (12" X 24") allows for countless die cutting patterns. Tippmann also manufactures the Clicker 700 die cutting press which delivers up to 7 tons of cutting pressure and has a (12" x 12" ) cutting area.
Don’t forget to visit our custom die page. We can manufacture just about any custom die to your exact specifications.
All Tippmann Die Cut Machines come with a one year warranty on all parts and labor and a 30 day money-back guarantee. (except shipping)
If you have any questions prior to ordering contact Chelsea 260-441-9603
International Orders Please email Chelsea at Chelsea@tippmannindustrial.com
Attractive Tippmann "Clicker" Features
Air operated die cutting machines deliver tons of pressure at the touch of a button.
|
CLICKER 1500 Die Cutting press ships with: |
SPECIFICATIONS:
- Make.................................................................Tippmann
- Model...............................Clicker 1500 Die Cutting Press
- Cutting Pressure.....................................................15 ton.
- Cutting Beam......................................................24" x 12"
- Cutting Area........................................................24" x 12"
- Deck clearance...........................................................2.0"
- Travel of deck is adjustable up to .................................1.0"
- Recommended die height...........................................1.25"
- Approximate Shipping weight..................................560 lbs
- Operating Pressure..........................................80-110 PSI
- Overall Dimensions.............................24" W, 20" D, 14" H
Press Applications (non-exhaustive list)
- Cutting Gaskets
- Cutting Printed material
- Cutting Envelopes
- Cutting Leather
- Cutting Textiles
- Cutting Medical Devices
- Cutting Samples
- Cutting Pictures
- Cutting Magnets
- Cutting Swatches
- Cutting Stickers
- Cutting Labels
Materials:
- C Casting: cast iron
- Top plate: Steel
- Middle Plate: Ductile iron
- Bottom Plate: Aluminum
- Control Box: Stainless Steel
- Adjusting Bars: Steel
- Cutting Deck: HDPE (high density polyethylene)
